Chip8 Emulator

14/04/2026

A chip8 emulator written in Golang

Tech Used

• Go (Golang) – core emulator implementation
• Ebiten – rendering, game loop, sound output and input handling

Running the emulator

Prerequistes

• go 1.24.4

Clone the repositry

git clone https://github.com/rentri/goChip8.git

Run & Build

cd goChip8

Run without building

go run . <path-to-rom>

OR

Build

go build -o chip8

Then run

./chip8 <path-to-rom>

Showcase

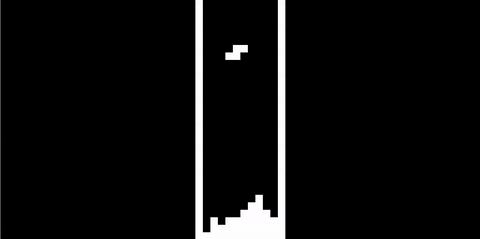

Tetris

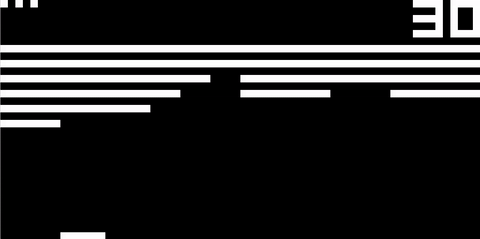

Breakout

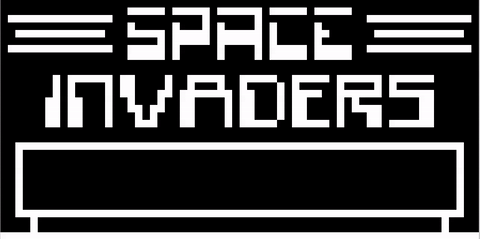

Space Invaders

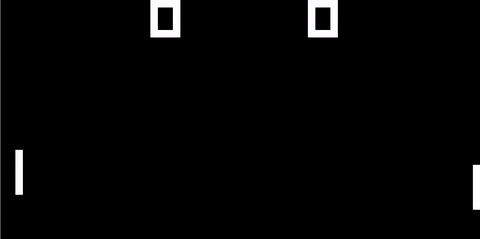

Pong

Tests Passed

Chip-8 Splash Screen

IBM LOGO

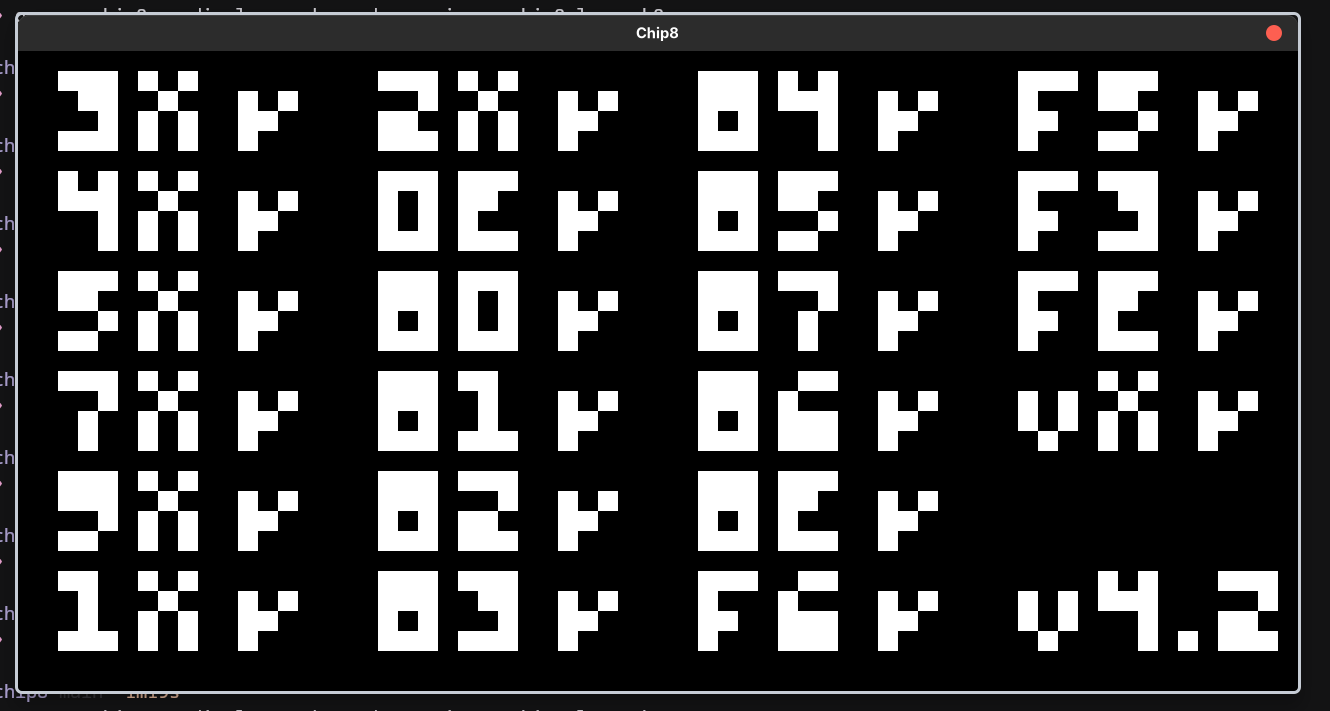

CORAX+ opcode test

Flags test

Our implementation of SHR and SHL instructions uses modern beavior. Hence 8XY6 & 8XYE fail the last check.

Quirks test

Some key presses may occasionally not register due to high CPU speed or keyboard polling. If you press a key when the emulator was not checking if it is pressed, you will experience “key miss”, where the press won’t be registered. The slower the emulation speed the higher chance for it to happen.

Credits

• Test ROMs from Timendus’s CHIP-8 Test Suite
• Reference from Cowgod’s CHIP-8 Technical Reference
